You can use the remote control to turn the CommBox on or off, change the input source, control the volume, and more. You can also use the remote control to open the on-screen menus and change the CommBox’s settings. You cannot take a screenshot using the remote control.
Note:
- For best result point the remote at the remote receiver on the bottom right of the screen
- Keep the remote control away from liquids. If it gets wet, wipe it dry immediately.
- Do not expose the remote control to heat or steam.
- Do not open any part of the remote control other than the battery compartment.

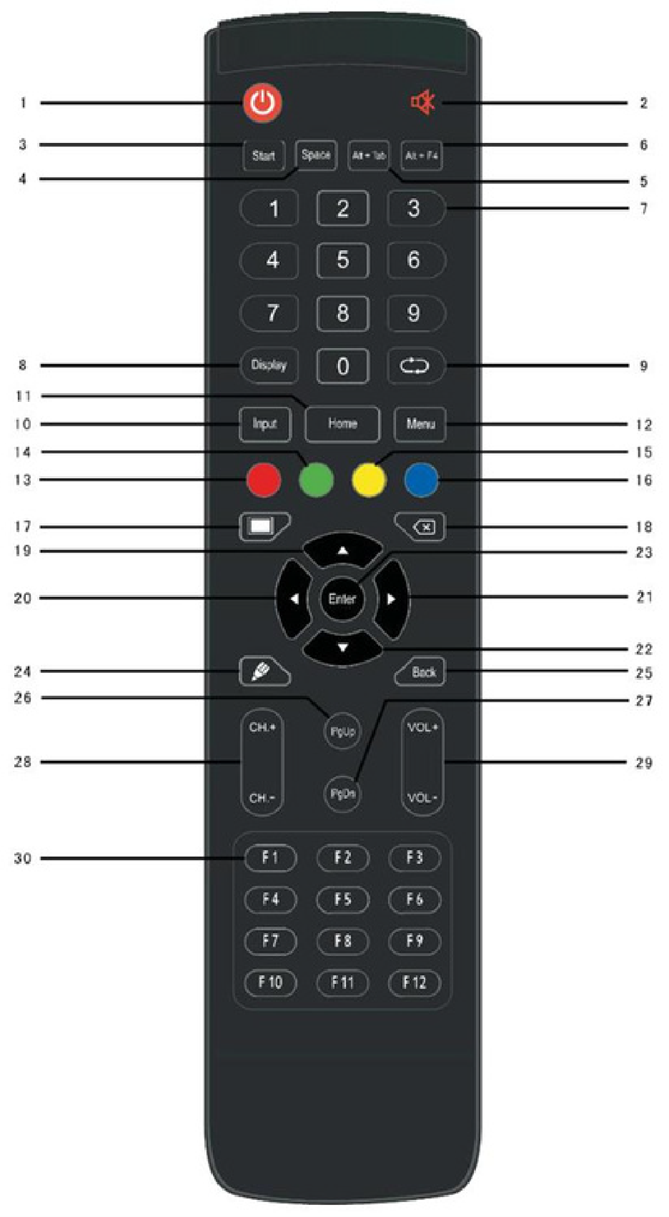

The image and table below will list the remote control’s key functions
|
Number |
Item |
Function description |
|
1 |
Power |
Power on, off or standby the CommBox |
|
2 |
Mute |
Mute on/off |
|
3 |
Start |
Built-in computer Windows key |
|
4 |
Space |
Built-in computer Space key |
|
5 |
Alt + Tab |
Built-in computer space bar Alt + Tab |
|
6 |
Alt + F4 |
Built-in computer program window close button |
|
7 |
Numeric keys |
Numeric input keys |
|
8 |
Display |
Display channel information |
|
9 |
Cycle Key |
Non-function |
|
10 |
Input |
Input signal source selection key, choose different sources according to need |
|
11 |
Home |
Android system main screen button |
|
12 |
Menu |
Setting menu button, press this button to pop up |
|
13 |
Red |
Lock and unlock the touch function, the screen menu (except the input function of the remote) and the front button |
|
14 |
Green |
Lock and unlock front |
|
15 |
Yellow |
Call up the clock |
|
16 |
Blue |
Freeze and zoom |
|
17 |
Blank Screen |
One key for blank screen |
|
18 |
Back Space |
Backspace key |
|
19 |
^ |
Direction key, press this button for upwards selection |
|
20 |
< |
Direction key, press this button for left selection |
|
21 |
> |
Direction key, press this button for right selection |
|
22 |
v |
Direction key, press this button for downwards selection |
|
23 |
Enter |
Confirmation key, press this key to confirm selection state |
|
24 |
Pen |
Open Whiteboard |
|
25 |
Back |
Return key |
|
26 |
PgUp |
Built-in computer page (previous page) |
|
27 |
PgDn |
Built-in computer page (next page) |
|
28 |
CH.+ \CH.- |
Non-function |
|
29 |
VOL + \ VOL - |
Volume switch key |
|
30 |
F1-F12 |
Built-in computer F1-F12 function keys |
Note: All computer-related function keys are not available without a built-in computer
