      Getting Started 1: Unboxing, and installing the Wi-Fi Module

      Unboxing and Preparation

      Unbox the CommBox Classic S5 and ensure all components are included.

      • Power cable, HDMI cable, USB-C cable, USB A-B touch cable
      • Remote with batteries, two styluses, eraser, wall bracket with mounting kit
      • Wi-Fi module.

      Install the Wi-Fi Module

      Wifi Mod

      Turn on the CommBox

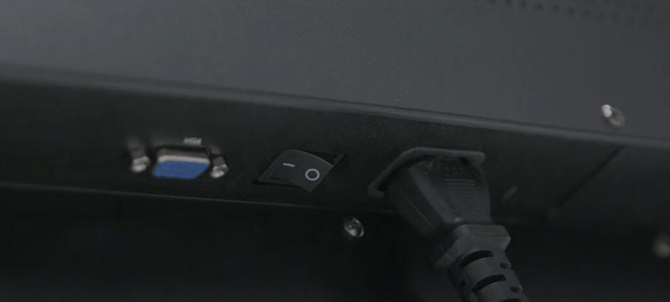

      Once the CommBox is connected to a power point, there is a power switch at the bottom of the screen behind the right speaker. Turn this on [the 1 position] and the CommBox will boot.

      Note: The position on of this button may vary depending on the size of your S5 CommBox, it will be located very close to the power cable.
