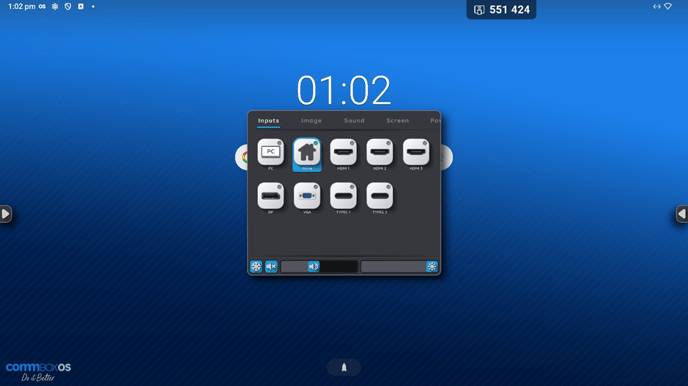

      Device Settings - Swipe up menu

      The device settings menu can be accessed by swiping up from the bottom of the screen. From here you to control the following aspects of the CommBox:

      Menu

      Notes

      Options

      Inputs

      The inputs tab shows all the inputs on the CommBox.

      When the blue indicator is showing in the top right that the input is active.

      Select the input you want to switch to by taping on it.

      HDMI1
      HDMI2
      HMDI3
      USB C
      Slot-in PC Port
      VGA


      You can adjust the image using the settings in the image tab.

      Most settings are sliders allowing you to adjust it until you are happy with the result.

      Image mode and colour temperature have pre-sets you can choose from

      Image Mode:

      • Standard
      • Bright
      • Soft
      • Custom
      • Contrast

      Brightness

      Sharpness

      Saturation

      Colour Temperature:

      • Standard
      • Cold
      • Warm

      Sound

      You can adjust the sound using the settings in the sound tab. Most settings are sliders allowing you to
      adjust it until you are happy with the result.

      Mode allows you to change the sound EQ
      between four pre-sets

      Output allows you to select which output you would like the audio sound to come out of

      Mode

      Bass

      Treble

      Balance

      Output:

      • Speaker
      • Line out
      • Mixed

      Screen

      Allows you to configure energy saver, blue light, VGA framing etc

      		 Pixel shift
      Auto backlight
      Eye care
      Energy saver

      Power

      Configure the power settings of your screen,
      set timing schedules and WoL

      		 Boot input
      Power on state
      Start PC
      Wake on LAN
      Android power save
      Power saves after time
      No signal power state
      Power saves after time
      Schedule power on/off

      Other

      Configure control and signal settings for your CommBox

      		 Allow USB C Ethernet Passthrough
      HDMI Version
      HDMI ARC
      HDMI CEC
      Auto source change
      HDMI Out
      HDMI out format
      HDMI out encryption
      HDMI Passthrough
      Screen Control

      Lock

      Lock or unlock Inputs, buttons and remote
      control

      		 Allow Input source renaming

      Inputs to Lock
      • PC
      • Home
      • HDMI 1
      • HDMI 2
      • HDMI 3
      • DP
      • VGA
      • TYPEC1
      • TYPEC2

      Physical Locks

      • Lock remote
      • Lock buttons

      Device Setting

      Set PIN

      Change PIN

      About

      User and privacy agreements



      Note: Your organisation might have elected a non-Android installation of the CommBox Classic S5. This means that you cannot access Android and need to use the CommBox Classic S5 on an input like HDMI 1. You will only have access to device setting dialogue box to control the screen
